Workpiece length (mm) 200 – 3,100
Workpiece width (mm) 70 – 1,000
Workpiece thickness (mm) 8 – 80

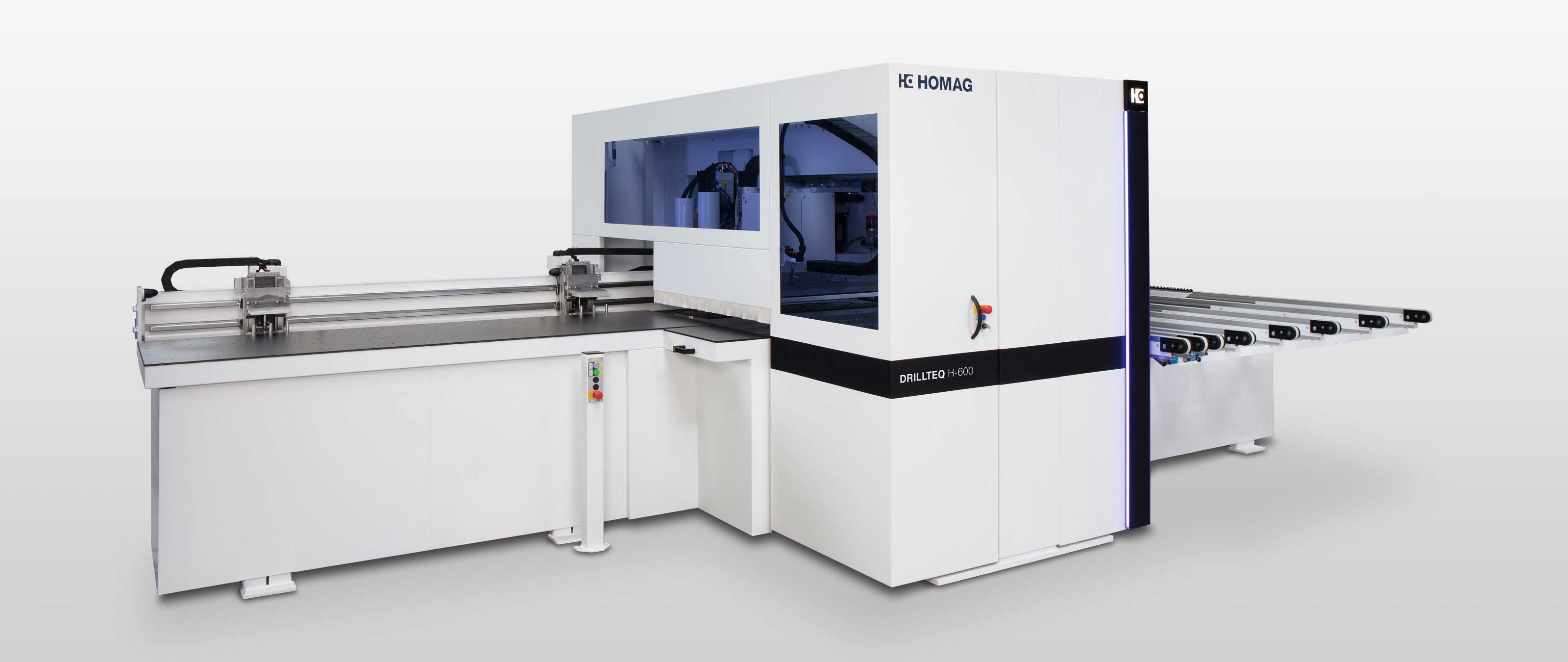

Our DRILLTEQ H-600 CNC processing center – our drilling expertise has never been packaged in such a clear, compact and innovative form.
- Up to 104 spindles handle the precise processing in any application area.
- Two CNC-controlled clamps ensure permanent firm hold and precise positioning of the workpieces.
- Up to 130 m/min travel speed ensures rapid completion of tasks.
- Even a workpiece thickness up to 80 mm (2 x 40 mm) can be processed.
- Thickness control and length measurement ensure safe process sequences.
- The patented spindle clamp ensures an always accurate drilling depth for all drilling.
- The Smooth Pressure System© ensures a protective air cushion under the workpiece and thus high-quality parts handling
